When it comes to transporting cement particles, various methods are employed depending on the specific requirements of the application. Understanding the different types of cement particle conveying systems is crucial for selecting the most efficient and effective solution. This article provides an overview of common cement particle conveying methods, with a particular focus on the advantages and features of pneumatic conveying, a popular choice in the industry.
Several approaches are used for transporting cement particles, each with its own set of characteristics and applications. The primary methods include gravity conveying, mechanical conveying, and pneumatic conveying. Gravity conveying relies on the natural force of gravity to move materials from a higher to a lower elevation. This method is simple and cost-effective for short distances and low volumes. However, it is limited by the need for a sufficient vertical drop and is not suitable for long distances or complex layouts. Mechanical conveying, such as belt conveyors, screw conveyors, and bucket elevators, uses mechanical components to move materials. These systems are reliable and can handle a wide range of particle sizes and volumes. They are commonly used in bulk material handling applications. Pneumatic conveying, on the other hand, uses air or other gases to transport materials through a pipeline. This method is flexible, can handle both dry and wet materials, and is ideal for long-distance and complex conveying systems.
Pneumatic conveying offers several advantages over other cement particle conveying methods. One of the key benefits is its ability to handle a wide range of particle sizes and shapes, including fine powders and irregularly shaped particles. This makes it suitable for transporting cement from storage silos to processing equipment or for delivering cement to construction sites. Another advantage is the flexibility of the system. Pneumatic conveying can be easily integrated into existing infrastructure and can be adapted to changing production needs. The system can be designed to operate in both positive and negative pressure modes, providing flexibility in material handling. Additionally, pneumatic conveying systems are relatively compact and can be installed in confined spaces, which is beneficial for facilities with limited floor space. The process is also relatively clean and dust-free compared to other methods, reducing the risk of contamination and improving workplace safety.

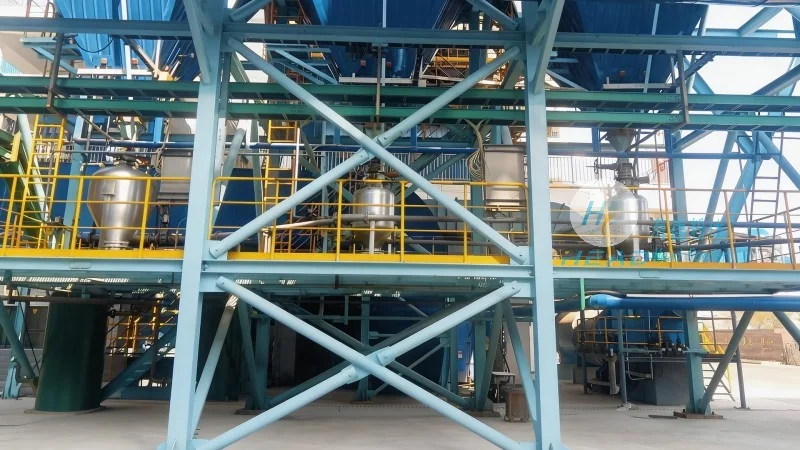

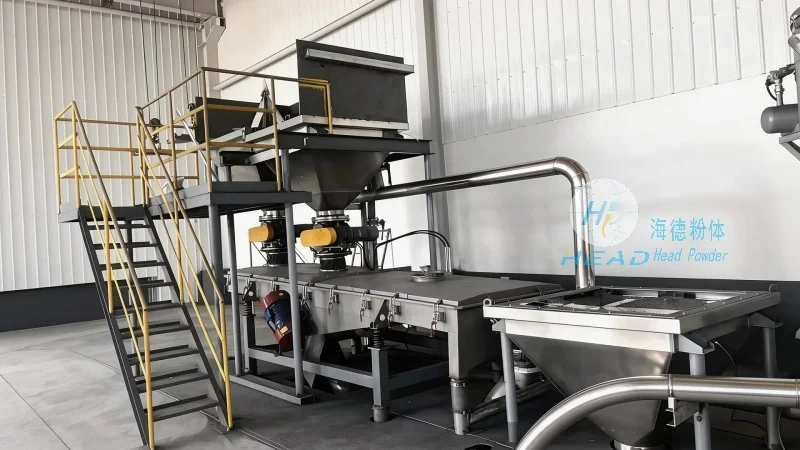

Modern pneumatic cement particle conveying systems are equipped with several features that enhance their performance and efficiency. These features include high-pressure blowers or vacuum pumps that generate the necessary air flow to move materials. The system typically consists of a hopper, a conveying line, and a receiver. The hopper is used to store the cement particles, and the conveying line transports them to the receiver. The receiver can be a storage silo, a processing unit, or a delivery point. The system may also include filters and cyclones to separate the cement particles from the air, ensuring that the material is delivered in a clean and dry state. Control systems are often integrated into the design to monitor and regulate the conveying process, ensuring consistent performance and preventing system failures. These features contribute to the overall reliability and efficiency of the pneumatic conveying system.
Pneumatic conveying is widely used in various applications involving cement particle transport. In cement manufacturing plants, it is used to move raw materials from storage to processing equipment and to transport finished cement products to storage silos or delivery trucks. In construction sites, pneumatic conveying systems are used to deliver cement to mixing stations, ensuring a consistent and efficient supply of material. The system is also used in industrial applications where cement is used as a binding agent, such as in concrete production or in the manufacturing of cement-based products. The flexibility and efficiency of pneumatic conveying make it an ideal choice for these applications.
In conclusion, cement particle conveying methods vary, with each method having its own advantages and limitations. Pneumatic conveying stands out as a versatile and efficient solution for transporting cement particles, offering benefits such as flexibility, cleanliness, and the ability to handle a wide range of materials. The systems provided by companies like Shandong HeadPowder Engineering Co., Ltd., based in China, are designed to meet the specific needs of cement particle handling, ensuring reliable and efficient material transport. By understanding the different methods and their features, industries can select the most appropriate conveying system for their applications, optimizing their operations and improving overall productivity.
